Refrigeration Equipment

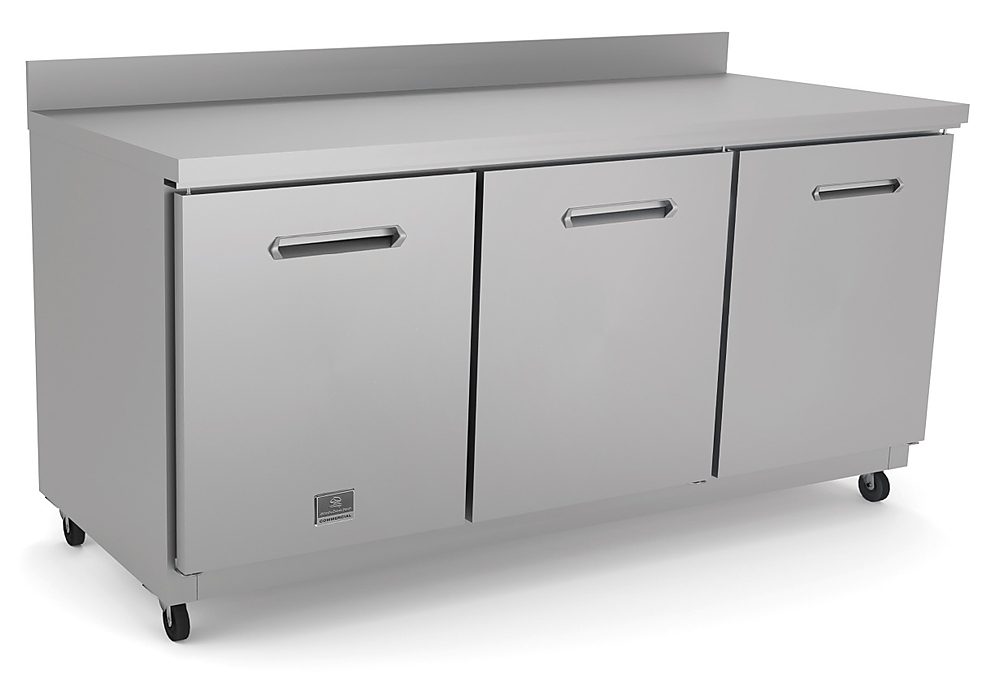

3-Door Work Top Refrigerator 72" Long 738302
3-Door Work Top Refrigerator 72" Long
- Features
- Specifications
- Documents
-
External temperature display.
-
Removable gasket for easy cleaning operations.
-
Automatic Defrost Cooling System provides worry-free performance.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
-
Heavy duty Vinyl coated steel shelves.
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
Pre-wired heavy duty power cord.
-
Heavy duty door hinges.
-
Self-closing door with 90-degree stay-open feature.
-
Heavy duty casters.
-
Magnetic gasket removable without tools for easy cleaning.
Electric
- Supply voltage: 115 V/1 ph/60 Hz
- Electrical power, max: 0.36 kW
- Plug type: USA NEMA 5-15P
Capacity:
- Gross capacity: 18 cu.feet
- Number and type of grids (included): 3 - 538x425/580x425
Sustainability
- Refrigerant type: R290
- GWP Index: 3
- Refrigerant weight: 130 g
Refrigeration Data
- Current absorbed: 3.5 Amps
- Compressor power: 1/5 hp
- Operating temperature min.: 32 °F
- Operating temperature max.: 41 °F
- Condenser type: Fin & tube
- Defrost type: Auto Defrost
Key Information:
- Door hinges: 1 Left+2 Right
- Capacity: 17.9999 cu.ft.
- External dimensions, Width: 71 3/4" (1822 mm)
- External dimensions, Depth: 29 15/16" (760 mm)
- External dimensions, Height: 39 5/8" (1007 mm)
- Number and type of doors: 3 Full
- Internal Dimensions (depth): 24 13/16" / (630 mm)
- Internal Dimensions (height): 24 7/16" / (620 mm)
- Internal Dimensions (width): 66 15/16" / (1700 mm)
- Shipping height: 42 1/8" (1070 mm)
- Shipping weight: 357 lbs (162 kg)
- Shipping volume: 56.28 ft³ (1.59 m³)
- Type of external material: Stainless Steel
- Type of internal material: Polystyrene
- Warranty: 3 / 5 years
- Approvals ETL C&US;ETL SANITATION
