Refrigeration Equipment

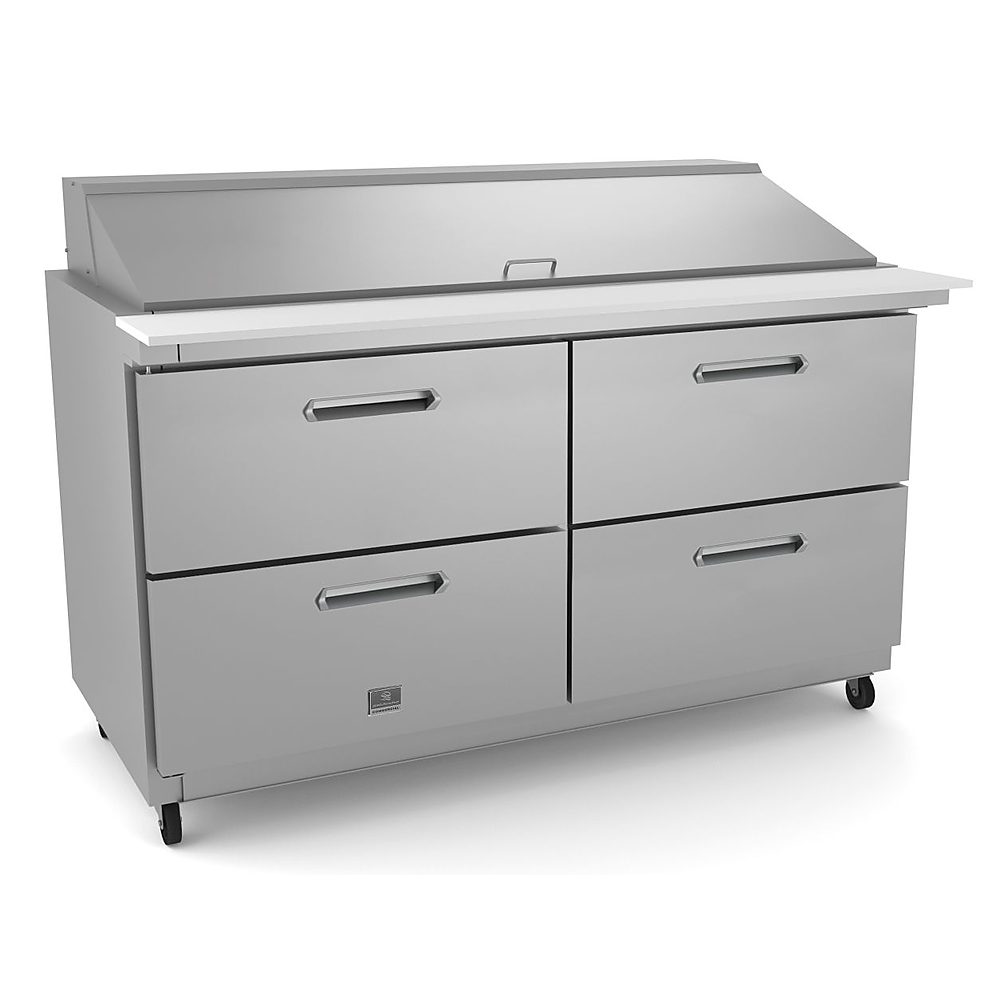

4-Drawer Mega Top Prep Table 61" Long 24-1/6 Pan 738288
4-Drawer Mega Top Prep Table 61" Long 24-1/6 Pan
- Features
- Specifications
- Documents
-
External temperature display.
-
Removable gasket for easy cleaning operations.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Automatic Defrost Cooling System provides worry-free performance.
-
Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
-
Full Depth cutting board.
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
Heavy duty casters.
-
Insulated lid maintains food freshness.
-
Pre-wired heavy duty power cord.
-
Magnetic gasket removable without tools for easy cleaning.
Electric
- Supply voltage: 115 V/1 ph/60 Hz
- Electrical power, max: 0.78 kW
- Plug type: USA NEMA 5-15P
Capacity:
- Gross capacity: 15.5 cu.feet
Refrigeration Data
- Compressor power: 1/3 hp
- Operating temperature min.: 32 °F
- Operating temperature max.: 41 °F
- Condenser type: Fin & tube
- Defrost type: Auto Defrost
Sustainability
- Current consumption: 7.5 Amps
- Refrigerant type: R290
- GWP Index: 3
- Refrigerant weight: 90 g
Key Information:
- Capacity: 15.5 cu.ft.
- External dimensions, Width: 61 1/4" (1555 mm)
- External dimensions, Depth: 34 1/2" (877 mm)
- External dimensions, Height: 43 3/16" (1097.5 mm)
- Internal Dimensions (depth): 23 13/16" / (605 mm)
- Internal Dimensions (height): 23 1/2" / (597 mm)
- Internal Dimensions (width): 56 1/4" / (1429 mm)
- Shipping height: 47 1/4" (1200 mm)
- Shipping weight: 518 lbs (235 kg)
- Shipping volume: 61.5 ft³ (1.74 m³)
- Type of external material: Stainless Steel
- Type of internal material: Polystyrene
- Warranty: 3 / 5 years
- Approvals ETL C&US;ETL SANITATION
- N° of drawers: 4
CAD Drawings
(298,29 KB)
Data Sheet
BIM/Revit
(1,87 MB)
Spare Parts Catalogue
(234,24 KB)
(150,51 KB)
