4-Drawer Mega Top Prep Table 48" Long 18-1/6 Pan 738287

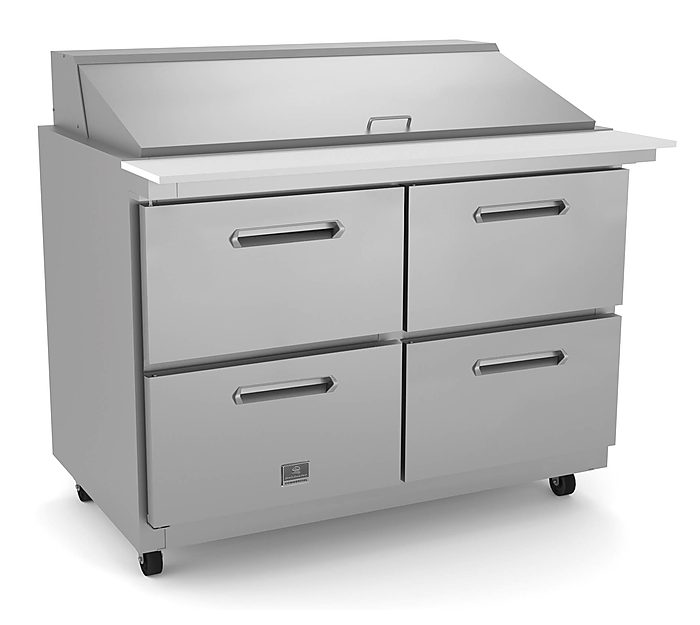

4-Drawer Mega Top Prep Table 48" Long 18-1/6 Pan
- Features
- Specifications
- Documents
-
External temperature display.
-
Removable gasket for easy cleaning operations.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Automatic Defrost Cooling System provides worry-free performance.
-
Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
-
Full Depth cutting board.
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
Heavy duty casters.
-
Insulated lid maintains food freshness.
-
Pre-wired heavy duty power cord.
-
Magnetic gasket removable without tools for easy cleaning.
Electric
- Supply voltage: 115 V/1 ph/60 Hz
- Electrical power, max: 0.72 kW
- Plug type: USA NEMA 5-15P
Capacity:
- Gross capacity: 12 cu.feet
Refrigeration Data
- Compressor power: 1/3 hp
- Operating temperature min.: 32 °F
- Operating temperature max.: 41 °F
- Condenser type: Fin & tube
- Defrost type: Auto Defrost
Sustainability
- Current consumption: 7 Amps
- Refrigerant type: R290
- GWP Index: 3
- Refrigerant weight: 90 g
Key Information:
- External dimensions, Width: 48 1/4" (1225 mm)
- External dimensions, Depth: 34 1/2" (877 mm)
- External dimensions, Height: 43 3/16" (1097.5 mm)
- Internal Dimensions (depth): 23 13/16" / (605 mm)
- Internal Dimensions (height): 23 1/2" / (597 mm)
- Internal Dimensions (width): 42 13/16" / (1088 mm)
- Shipping height: 47 1/4" (1200 mm)
- Shipping weight: 421 lbs (191 kg)
- Type of external material: Stainless Steel
- Type of internal material: Polystyrene
- Warranty: 3 / 5 years
- Approvals ETL C&US;ETL SANITATION
- N° of drawers: 4
