Refrigeration Equipment

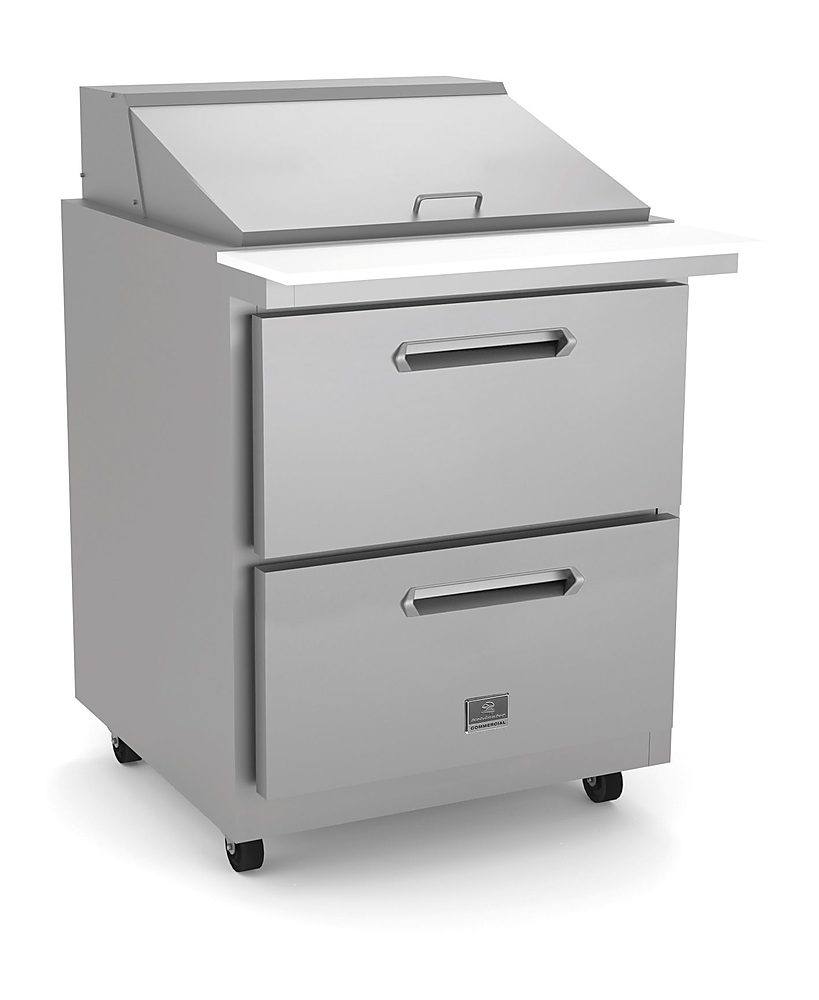

2-Drawer Mega Top Prep Table 29" Long 9-1/6 3-1/9 Pan 738286
2-Drawer Mega Top Prep Table 29" Long 9-1/6 3-1/9 Pan
- Features
- Specifications
- Documents
-
External temperature display.
-
Removable gasket for easy cleaning operations.
-
Fin & Tube Condenser improves performance in high temperature environments.
-
Automatic Defrost Cooling System provides worry-free performance.
-
Electronic Temperature Control, quick and simple to set, with control display for easy monitoring.
-
Full Depth cutting board.
-
Cabinet completely insulated with high density polyurethane for low environmental impact.
-
Heavy duty casters.
-
Insulated lid maintains food freshness.
-
Pre-wired heavy duty power cord.
-
Magnetic gasket removable without tools for easy cleaning.
Electric
- Supply voltage: 115 V/1 ph/60 Hz
- Electrical power, max: 0.52 kW
- Plug type: USA NEMA 5-15P
Capacity:
- Gross capacity: 7 cu.feet
Refrigeration Data
- Compressor power: 1/5 hp
- Operating temperature min.: 32 °F
- Operating temperature max.: 41 °F
- Condenser type: Fin & tube
- Defrost type: Auto Defrost
Sustainability
- Current consumption: 5 Amps
- Refrigerant type: R290
- GWP Index: 3
- Refrigerant weight: 85 g
Key Information:
- External dimensions, Width: 28 15/16" (735 mm)
- External dimensions, Depth: 34 1/2" (877 mm)
- External dimensions, Height: 43 3/16" (1097.5 mm)
- Internal Dimensions (depth): 23 13/16" / (605 mm)
- Internal Dimensions (height): 23 1/2" / (597 mm)
- Internal Dimensions (width): 24 1/16" / (611 mm)
- Shipping height: 47 1/4" (1200 mm)
- Shipping weight: 273 lbs (124 kg)
- Shipping volume: 29.88 ft³ (0.85 m³)
- Type of external material: Stainless Steel
- Type of internal material: Polystyrene
- Warranty: 3 / 5 years
- Approvals ETL C&US;ETL SANITATION
- N° of drawers: 2
CAD Drawings
(264,22 KB)
Data Sheet
BIM/Revit
(1,66 MB)
Spare Parts Catalogue
(230,37 KB)
(153,71 KB)
